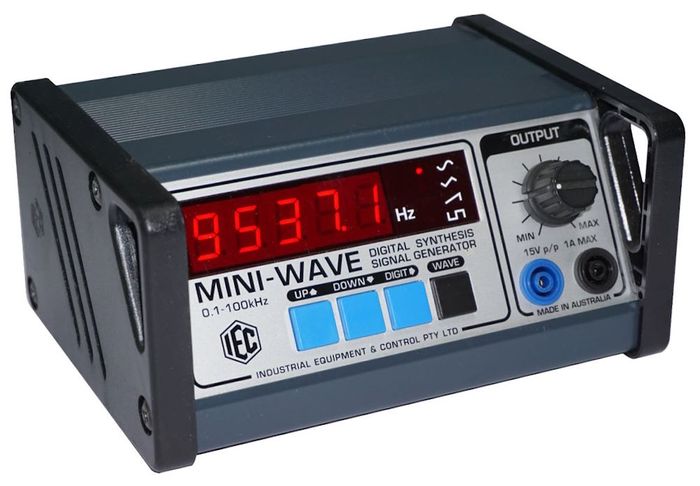

Signal generator 'Mini-Wave' digital

Stock Code:
3753-101
Unit:
Each
Price:
$384.80 (ex GST)

Description

The "Mini-Wave" is a compact Digital Signal Generator and provides Waveforms of Sine, Square, Triangle and Sawtooth.

It is crystal locked, therefore the accuracy is extremely high (approx 0.01%) and stability is perfect.

The instrument runs from 240V mains and provides an adjustable output of 15V peak to peak or 5V AC RMS. The output can supply up to 1A into the load which is current limited against overload.

The IEC "Quick Set" system permits very fast setting of the preset frequency required and resolution is 0.1Hz up to 10kHz.

From 10kHz up to 100kHz, the resolution is 1 Hz.

The "Mini-Wave" can be used for experiments using Kundt's Apparatus, audio experiments or resonance experiments using inductance and capacitance. It can also be used to demonstrate the functions of an oscilloscope.

The large output power permits the running of very large speakers or vibraters, such as Melde-s Apparatus.



Please request ETA
