Demonstration Transformer

Stock Code:
PH0849
Unit:
Each
Price:
$520.00 (ex GST)

Description

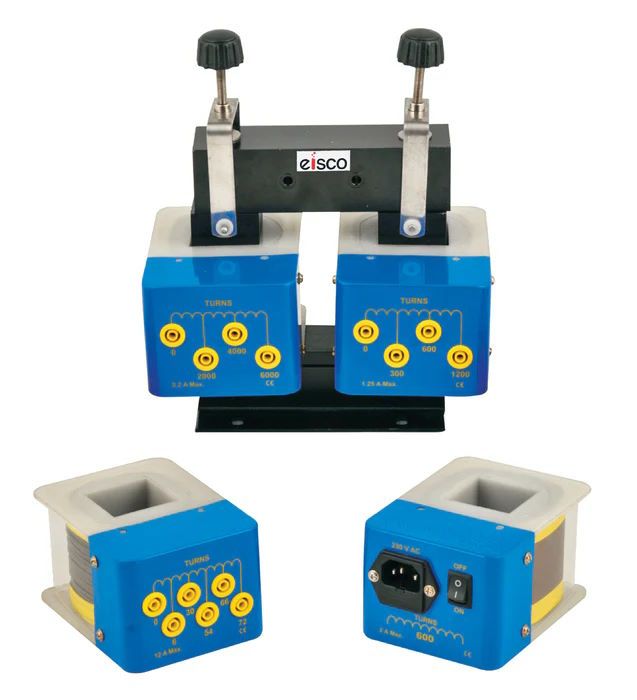

A large scale transformer that is ideal for classroom use.

The coils are fitted with intermediary outputs providing many transformation ratios.

Consisting of 1 magnetic circuit made up of highly permeable U-shaped metal sheeting which can be closed via two clamps with tightening screws.

Section: 40 x 40mm

Length: 150mm

Height: 170mm

1x coil of 6000-turns, I max: 0.2A

Intermediary coil of 2000-turns output & one coil of 600-turns, I max: 2A

1x coil of 1200-turns. I max: 1.25A - fitted with intermediary 300 and 600-turns outputs.

1x coil of 72-turns, I max: 12A - fitted with intermediary 6, 30, 54 and 66-turns outputs.



Please request ETA
