EHV power supply for spectrum discharge

Stock Code:
3785-001
Unit:
Each
Price:
$346.00 (ex GST)

Description

## The IEC 'Spectrum Lamp Power Supply' should not be confused with the 'Spectral Lamp Power Supply' (3795-001) ##

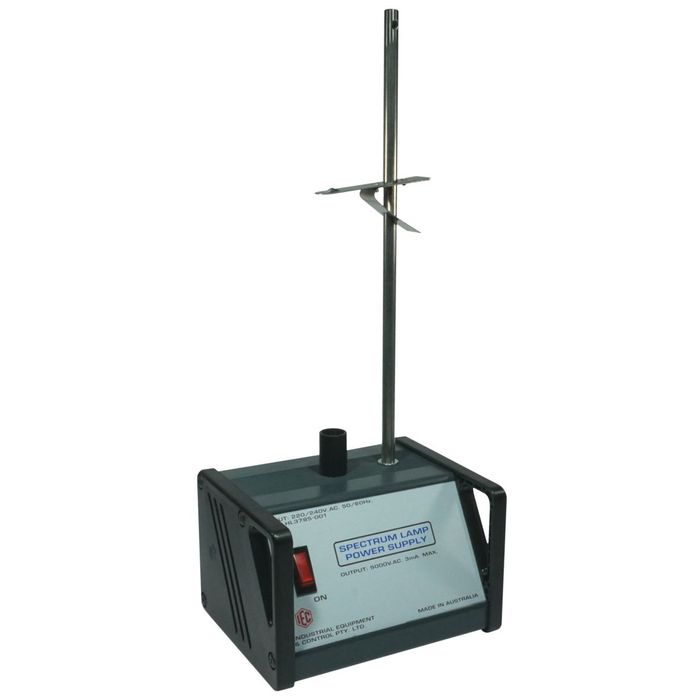

The EHV power supply for spectrum discharge tubes is a self contained unit that runs from 240V AC mains.

A stainless steel rod and sliding clamp supports various lengths of 'Spectrum Discharge Tube' and a very high voltage is applied. The high voltage terminal is recessed in a deep socket on the top face of the instrument. The mains cable is removable.

Many different spectrum tubes are available containing different gases. These gases emanate various specific wavelengths of light from the thin middle section of the tube. For choice of 'Spectrum Discharge Tubes', see 3786-001 through to 3786-011.

Notes: The hydrogen gas discharge tube requires the highest voltage for correct operation and the IEC power supply provides the correct voltage. These tubes are often energised by a Rhumkorff spark coil or EHV Power Supply.

WARNING: RISK OF ELECTRIC SHOCK. ALWAYS TURN OF POWER BEFORE ADJUSTING OR CHANGING TUBES. DO NOT INSERT FINGER INTO SOCKET.



Please request ETA
