Microscope digital USB monocular

Stock Code:
MS1024-DM
Unit:
Each
Price:
$795.00 (ex GST)

Description

Description

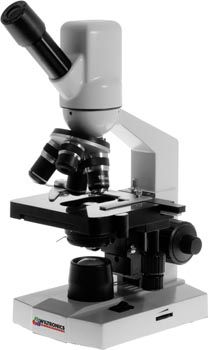

This microscope is a USB output digital camera version. Features a robust design, 1.3 megapixel CMOS camera, 4x objectives, built-in LED illumination with brightness adjustment and mechanical stage.

Features

  • Megapixel CMOS camera
  • Built-in LED illumination
  • 4x objectives
  • Robust design
  • Magnification 40X - 1000X


Specifications

Sensor

1.3 Megapixel CMOS

Resolution

1280x1024 Effective Pixels

Frame Rate

16 FPS @1280x1024

Pixel Size

5.2um x 5.2um

Data Interface

USB 2.0 - Windows 2000/XP/Vista/7/8/10* *Windows 10 users will need to run program in compatibility mode for Windows 8.

Software

Scope Image 9.0

Max Magnification

1000X

Viewing Head

Monocular head, 45° inclined, 360° rotating

Eyepiece

Wide Field (WF) 10X - 18mm

Objective 1

Din achromatic 4X

Objective 2

Din achromatic 10X

Objective 3

Din achromatic 40X

Objective 4

Din achromatic 100X (oil)

Nosepiece

Quadruple nosepiece with positive click stopper

Stage

Double layer mechanical stage 115mm x 125mm / 70mm x 20mm

Focusing

Coaxial course and fine adjustment

Diaphragm

Iris Diaphragm

Condenser

NA1.25 Abbe Condenser

Illumination

1W LED Lamp, Adjustable brightness

Power (Camera)

USB 2.0

Power (Illumination)

AC adaptor

Please request ETA
